Odd T-smooth stuff going on..
show user profile  9krausec
Hey, does anyone have an idea as to why this is happening? I have all quads, and no mesh errors.. Why would Turbo Smooth be acting this way (all poly id's are the same).

Cheers
















- Portfolio-




read 393 times
10/2/2011 8:58:15 PM (last edit: 10/2/2011 8:58:15 PM)
show user profile  Davious
only thing that leaps out at me are 2 polys that have visible tris on them , might affect turbosmooth. Delete the polys and re-create them. might be that you have some verts that need welding there.
Freeze the vid at 18 second and you will see the polys showing tris on the left hand side.

hope this helps


" Difficult, yes. Impossible , no..."
read 386 times
10/2/2011 9:20:04 PM (last edit: 10/2/2011 9:20:04 PM)
show user profile  IBENEZ21
Looks kinda like a smoothing group issue.
Photobucket

http://www.thunderhead3d.com

read 382 times
10/2/2011 9:33:59 PM (last edit: 10/2/2011 9:33:59 PM)
show user profile  BishBashRoss
Sometimes I get random shit like this for no reason. Best delete and rebuild surrounding polys until it goes away.





read 375 times
10/2/2011 9:50:01 PM (last edit: 10/2/2011 9:50:01 PM)
show user profile  9krausec
huh, rebuilding the geometry fixed it! Thanks guys!




- Portfolio-




read 368 times
10/2/2011 10:30:38 PM (last edit: 10/2/2011 10:30:38 PM)
show user profile  9krausec

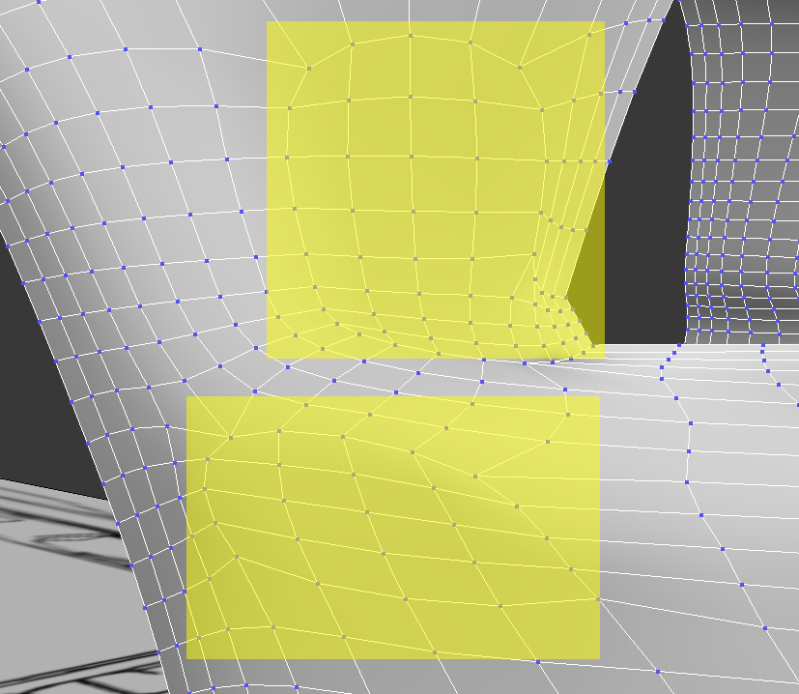

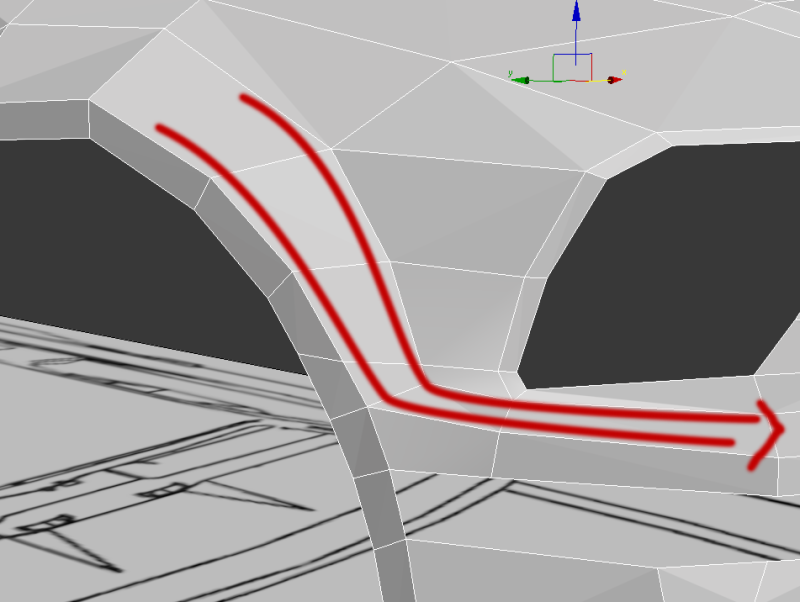

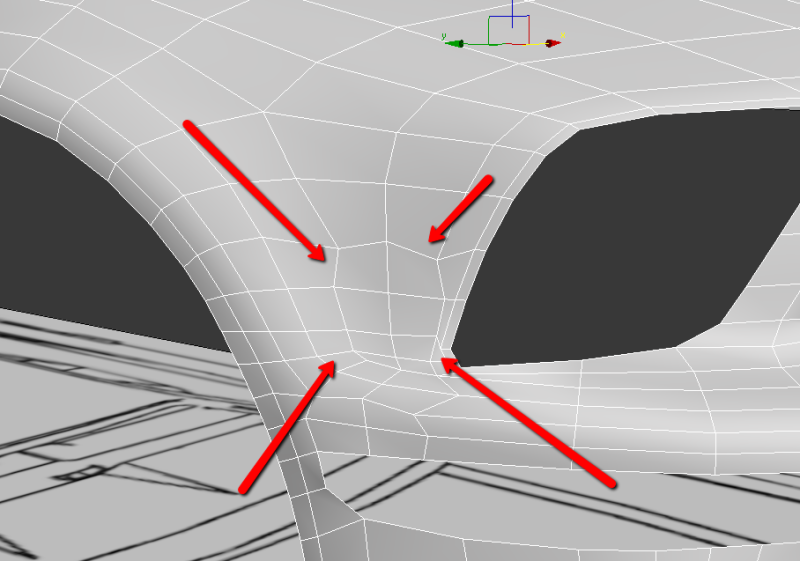

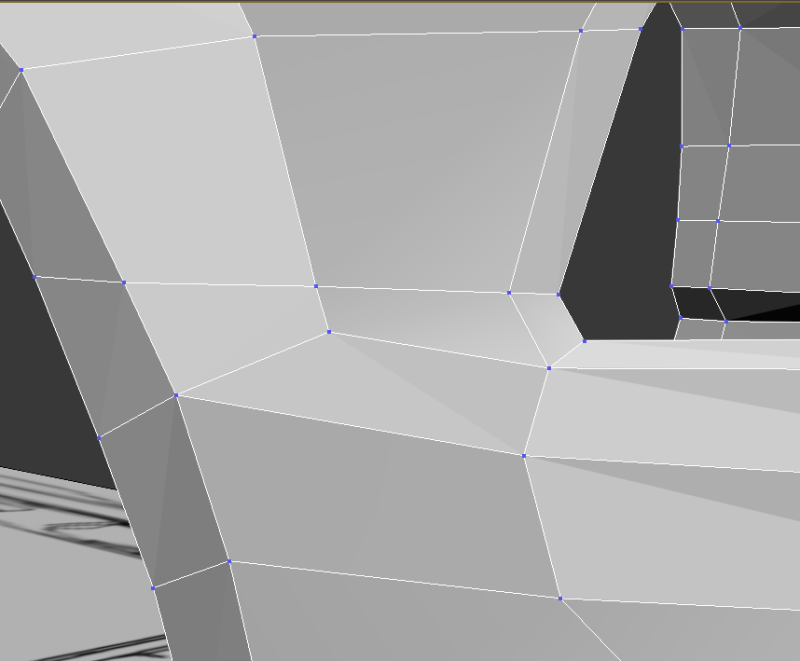

sort of on the same note, what am I doing wrong with my geometry? I am getting this stupid flat spots that shouldn't be there...

or maybe they should?

any hints guys?

Photobucket

Photobucket

Photobucket

Photobucket

Photobucket







- Portfolio-




read 363 times
10/2/2011 10:45:57 PM (last edit: 10/2/2011 10:45:57 PM)
show user profile  Coxy
Hmm that is a bit odd. Do you have any edge/crease weighting going on for those polys?



www.artasmedia.com
read 350 times
10/2/2011 11:48:10 PM (last edit: 10/2/2011 11:54:46 PM)
show user profile  9krausec
No, nothing! I just reset the Xform and collapsed it, it seems to be working better now. Thanks!




- Portfolio-




read 330 times
10/3/2011 7:23:56 AM (last edit: 10/3/2011 7:23:56 AM)
show user profile  nomee.hafeez
Hi, sometimes it happens there are multiple vertex on the same point, make sure there are one vertex i.e on following points, if does exist weld them.

if it doesn't work, select polygon from selection, press Ctrl + A to select all polygon then, in Polygon: Material IDs click Clear All, and then click Auto Smooth, some times smoothing of polygon does not work properly.

read 324 times
10/3/2011 9:51:54 AM (last edit: 10/3/2011 3:31:10 PM)
show user profile  mrgrotey
When turbosmooth doesnt smooth it how it should, 99% of the time its just fixed by converting to e-mesh then back to e-poly.




read 314 times
10/3/2011 12:18:00 PM (last edit: 10/3/2011 12:18:00 PM)
